DX air conditioning(Direct Expansion Air Conditioning Systems)

DX air conditioning Our Direct Expansion (DX) Systems provide efficient cooling solutions by utilizing refrigerant vapor expansion and compression cycles.
These systems are ideal for both residential and commercial applications, ensuring optimal temperature control and energy efficiency.

What is dx air conditioning system in HVAC

Direct expansion, or DX cooling, uses the principles of thermodynamics to transfer heat from one area to another through the evaporation and condensation of a refrigerant, which serves as the medium through which heat is captured and removed from one area and released in another.

Air conditioners use this mechanism to move heat from inside a room to outside, meaning the air conditioning system must have a component installed inside the room or area to collect thermal energy, and another component outside the room to release that thermal energy to the environment.

Refrigerators and freezers use DX cooling to remove thermal energy from inside the freezer unit to the outside. They utilize the same components as an air conditioning system, though on a smaller scale and creating much colder temperatures.

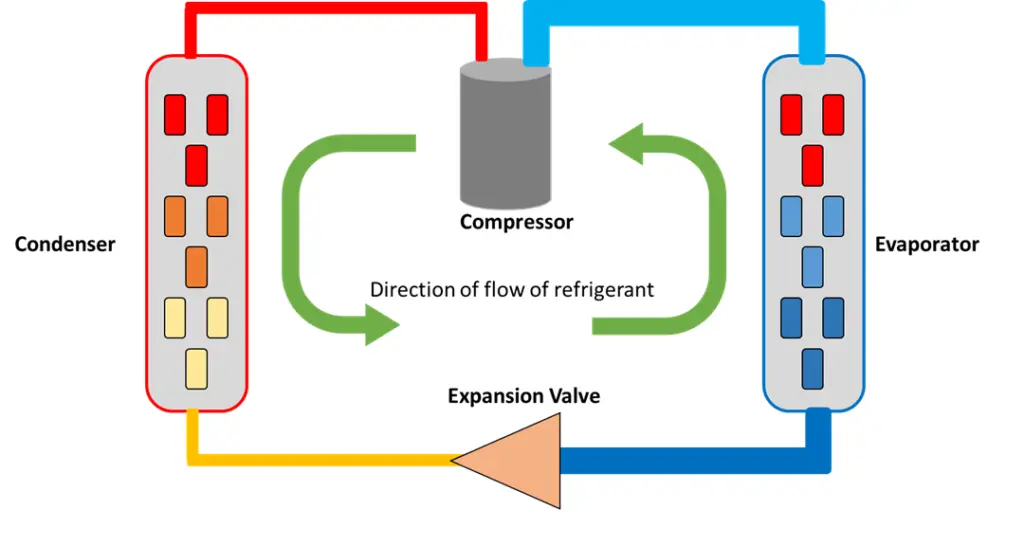

There are four main components of any DX cooling system, plus a heat absorbent medium, often called the refrigerant, that regulate the transference of heat energy by creating the temperature and pressure differentials required for DX cooling:

The refrigerant, which is the medium that flows through the system, collecting and dissipating heat in different areas;
The compressor, which is an electrical motor load and supplies the energy to drive the refrigerant through the system;
The evaporator, which collects heat from the area, and facilitates the boiling of the refrigerant;
The condenser, which dissipates heat into the ambient environment by allowing the refrigerant to return to a liquid state;
The expansion valve, which acts as a regulator between the high and low pressure side of the

Step-by-Step Breakdown of the DX air conditioning Cycle in HVAC Systems

A DX air conditioning (Direct Expansion) system operates on a closed-loop cycle and is powered by a motor-driven compressor, which is commonly a single-phase electric motor. The compressor circulates the refrigerant, which is specially designed to boil below room temperature, through the system.

Two major components help with this heat transfer:

The evaporator (inside the room) absorbs heat from indoor air.
The condenser (outside the building) releases the absorbed heat into the environment.
To guarantee proper heat transfer, the compressor raises the pressure and temperature of the refrigerant. This generates the appropriate temperature difference between the refrigerant and the outside air.
The expansion valve connects the condenser and evaporator. This component lowers the pressure of the refrigerant, allowing it to cool quickly before entering the evaporator again. As cold refrigerant runs through the evaporator coils, it absorbs heat from the warmer indoor air and efficiently cools the space.
This procedure is repeated in a cycle, allowing DX air conditioners to maintain a comfortable indoor atmosphere by constantly removing and releasing heat outdoors.
